The calculation is designed for geometric and strength designs and checks of bevel gear with straight, helical and curved teeth.
The software gives solutions to the following tasks:
- Calculation of helical and straight toothing.

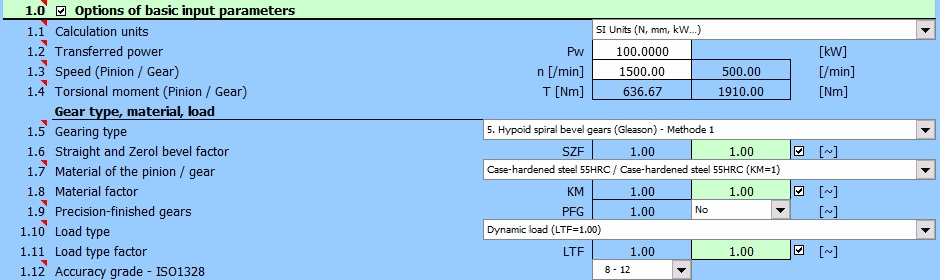

- Automatic design of a transmission with the minimum number of input requirements.
- Design for entered coefficients of safety (static, dynamic).

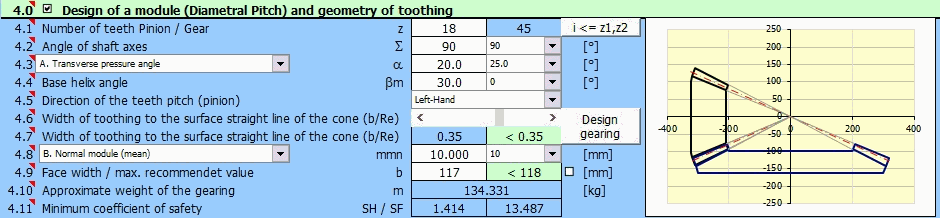

- Calculation of complete geometric parameters (including corrected toothing).
- Calculation of strength parameters, safety check.
- Supplementary calculations (calculation of parameters of the existing gear, temperature rise, design of shafts)
- Support of 2D and 3D CAD systems.
The calculation is designed for geometric designs of bevel and hypoid gear with straight, oblique and curved teeth according the ISO 23590.
The programme gives solutions to the following tasks:
- Preliminary design of the gear size.
- Detailed geometrical design for Straight, Oblique, Spiral, Zerol, and Hypoid (Gleason, Oerlikon, Klingelnberg) gear.
- Automatic design of a transmission with the minimum number of input requirements.

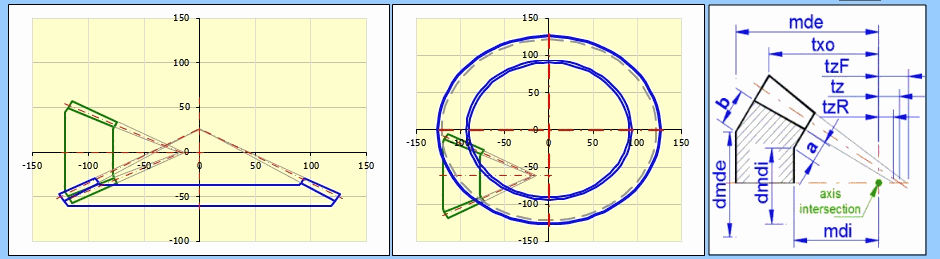

- Generation of standard 2D drawings.

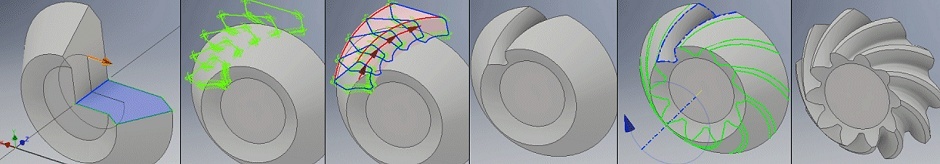

- Precise 3D model of the bevel gearing (Straight, Oblique, Spiral, Zerol).
- Precise 3D model of the hypoid gearing (Gleason, Oerlikon, Klingelnberg).
- Generates precise 3D models for manufacturing or printing for any 3D CAD system.
The calculations use procedures, algorithms and data from standards ANSI, ISO, DIN, BS and specialized literature.
List of standards: ISO 23509, AGMA ISO 23509:A, DIN 3971, DIN 3991 Kegelradern 1-4, ISO 6336 1-3, DIN 3965 Toleranzen für Kegelradverzahnungen 1-4, ISO 1328, DIN 3990, ANSI B6.1-1968, AGMA 2001-C95, AGMA 908-B89/95, AGMA 2003-A86/88, AGMA 2005-B88 and others.
