Tolerance Analysis of 1D, 2D, 3D Dimensional Chains

Two programs are available for the analysis of linear, 2D and 3D dimensional chains, which in addition to the basic analysis (Worst case, Root Sum Squares, Monte Carlo...) also include a solution to some special matters, like analysis of a dimensional chain deformed as a result of temperature change and design of tolerances for a selective assembly.

Tolerance Analysis of Linear Dimensional Chains

The program is designed for tolerance analysis of linear (1D) dimensional chains.

The program solves the following problems:

  • Tolerance analysis, synthesis and optimization of a dimensional chain using the arithmetic "WC" (Worst case) method, possibly the statistical "RSS" (Root Sum Squares) method.
  • Analysis of a dimensional chain deformed as a result of temperature change.
  • Extended statistic analysis of dimensional chain using the "6 Sigma" method.
  • Tolerance analysis of a dimensional chain during selective assembly including optimization of the number of assembled products.

All solved tasks enable work with standardized tolerance values, both in designing and in optimization of the dimensional chain.

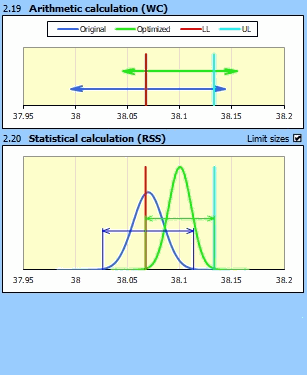

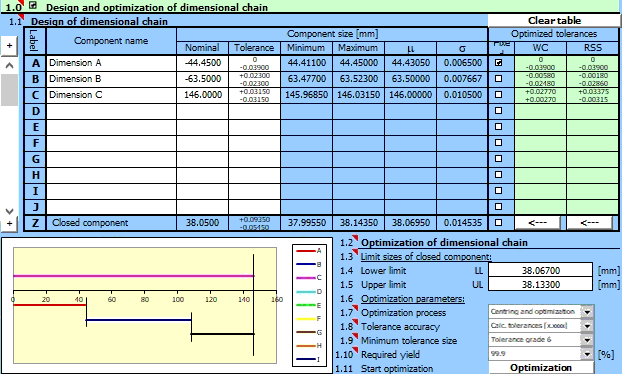

Tolerance Analysis of Linear Dimensional Chains Tolerance Analysis - Graphs

Tolerance Analysis of 2-D and 3-D Dimensional Chains

The program is designed for the tolerance analysis of two-dimensional (2-D) and three-dimensional (3-D) dimensional chains.

The program solves the following problems:

  • Tolerance analysis of a dimensional chain using the "Worst case" method.
  • Tolerance analysis of a dimensional chain using the "Monte Carlo" method.

In designing a dimensional chain, the program enables work with standardized tolerance values.

Data, methods, algorithms and information from professional literature and ANSI, ISO, DIN and other standards are used in calculation.

List of standards: ANSI B4.1, ISO 286, ISO 2768, DIN 7186

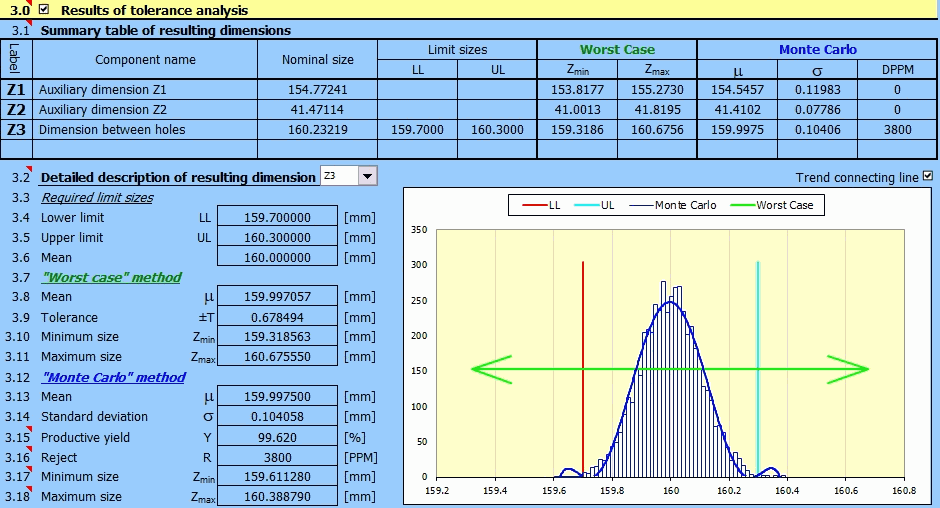

Tolerance Analysis of 2-D and 3-D Dimensional Chains
