The calculation is used for geometrical and strength designs and worm
gearing check.
The program solves the following tasks.

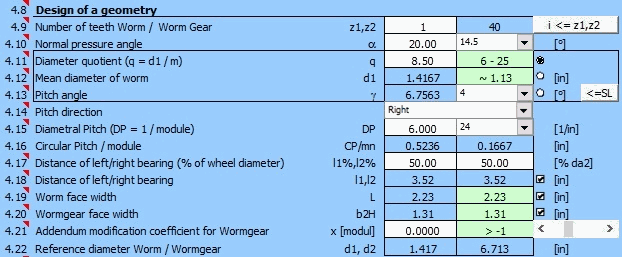

- Calculation of gearing dimensions.
- Automatic transmission design with minimum input requirements.
- Design for safety coefficients entered.
- Calculation of a table of proper solutions.

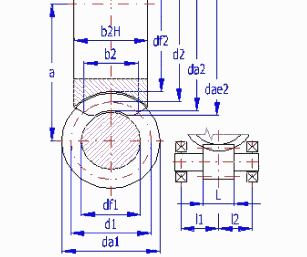

- Calculation of complete geometrical parameters.
- Calculation of strength parameters, safety check.
- Gearing design for precise centre-line distance.
- Auxiliary calculations (heating, shaft design).

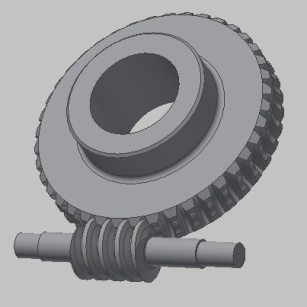

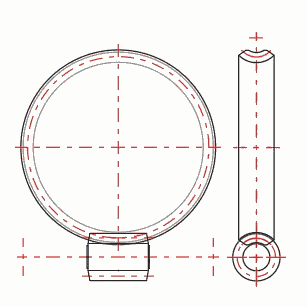

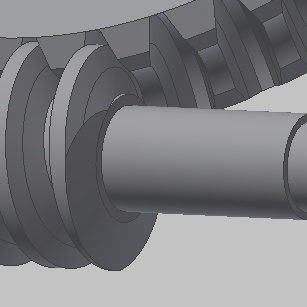

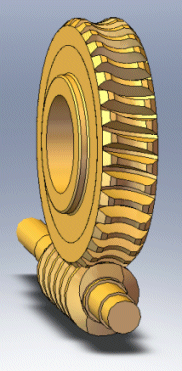

- Support of 2D and 3D CAD systems.
The calculations use procedures, algorithms and data from standards ANSI,
ISO, DIN, BS and specialized literature.
List of standards: ANSI/AGMA 6022-C93 (Revision of AGMA 341.02), ANSI/AGMA
6034-B92 (Revision of ANSI/AGMA 6034-A87), DIN 3996, DIN 3975-1, DIN 3975-2
|
